Description
- SKU: 4.5KW_BOS_DCR
- Availability: Product Will Dispatch In 4 Weeks
- Weight: 225.00 KGS
- T&C: Non Returnable
- Note: Structure & Installation Charges Not Included

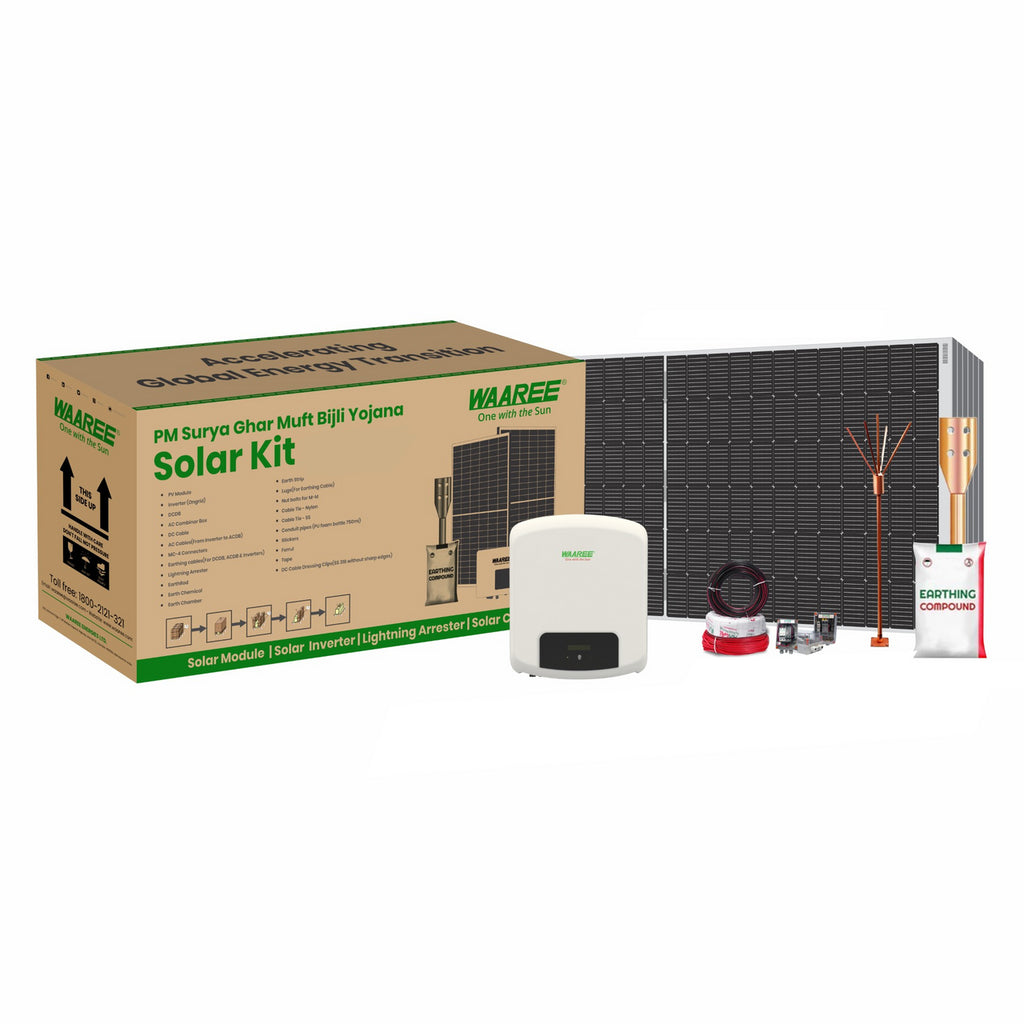

- Type: Ready To Install Solar Kit
- Manufacturer: WAAREE Energies Ltd, New Survey no. 1928 Village Degam, Taluka, Chikhli, Gujarat 396530
- Packer: WAAREE Energies Ltd, New Survey no. 1928 Village Degam, Taluka, Chikhli, Gujarat 396530
- Importer: WAAREE Energies Ltd, New Survey no. 1928 Village Degam, Taluka, Chikhli, Gujarat 396530
- Scheme: PM SURYA GHAR MUFT BIJALI YOJANA
- Subsidy: Eligible for Government Subsidies
| Sr. No. | Component | Specification | Qty. |
|---|---|---|---|
| 1 | PV Module | BiN-08-560/580/585 (TopCON DCR) | 8 |
| 2 | Inverter (On grid) | WS On Grid 1 phase Inverter 4.5 KVA-Gen4 | 1 |
| 3 | DCDB | DCDB 1-6 KW (1 in 1 out) With SPD 600V (Finder) & MCB 32 A | 1 |
| 4 | ACDB | ACDB 1-6 KW with Indicator 1 Phase SPD 1+1 (Finder), 25/32A 2P AC MCB (Schneider) | 1 |
| 5 | DC Cable | 1C, 4 Sqmm Cu. XLPO DC Cable - Red | 30 |
| 6 | DC Cable | 1C, 4 Sqmm Cu. XLPO DC Cable - Black | 30 |
| 7 | AC Cables (From Inverter to ACDB) | Ac cable 4C,Cu. Flexible cable 4 Sqmm | 20 |
| 8 | MC-4 Connectors | MC4 Compatible connectors (Pair) (Male Connectors & Female Connectors) |
4 |
| 9 | Lighting Arrestor | Conventional type LA 1.1m high LA HDG (minimum 80-micron) | 1 |
| 10 | Earthing kit (Earth Rod) | EarthRod L-1.5M D-14mm Cu min 250 micron | 3 |
| 11 | Earthing kit (Earth Chemical) | 10kg Earthing chemical fill | 1 |
| 12 | Earthing kit (Earth Chamber) | 245x245x195mm PPE chamber with cover | 3 |
| 13 | Earthing cables (For Module, DCDB, ACDB & Inverters) | 1C, 6 Sqmm Cu. Flexible cable, Green (For Modules-to-Modules Earthing) | 40 |
| 14 | Lug | 6 Sqmm Cu. Ring type lug | 26 |
| 15 | Nutbolts for M-M | SS 304 Bolt nut for mod-mod M4x20 (B+N+2PL+1 Serrated Washer) | 25 |
| 16 | Cable Tie - Nylon | UV protected Cable Ties-250mm, UL Listed UV Resistant Nylon Cable Ties | 1 |
| 17 | Cable Tie - SS | UV protected Cable Ties-300mm, SS Cable Ties - Fire Proof, UV Resistant and Halogen Free Cable ties, SS304, Self Locking, highly chemical and corrosion resistant. | 1 |
| 18 | Insulation Tape | Insulation Tape for 1 phase (Red-1, Black-1, Green-1) | 1 |
| 19 | DC Cable Dressing Clips (SS 316 without sharp edges) | DC Cable Dressing Clips (SS 316 without sharp edges) | 8 |
- Module Warranty:12 Years Product Warranty & 30 Years Power Output Warranty
- Inverter Warranty:8 Years
