Description

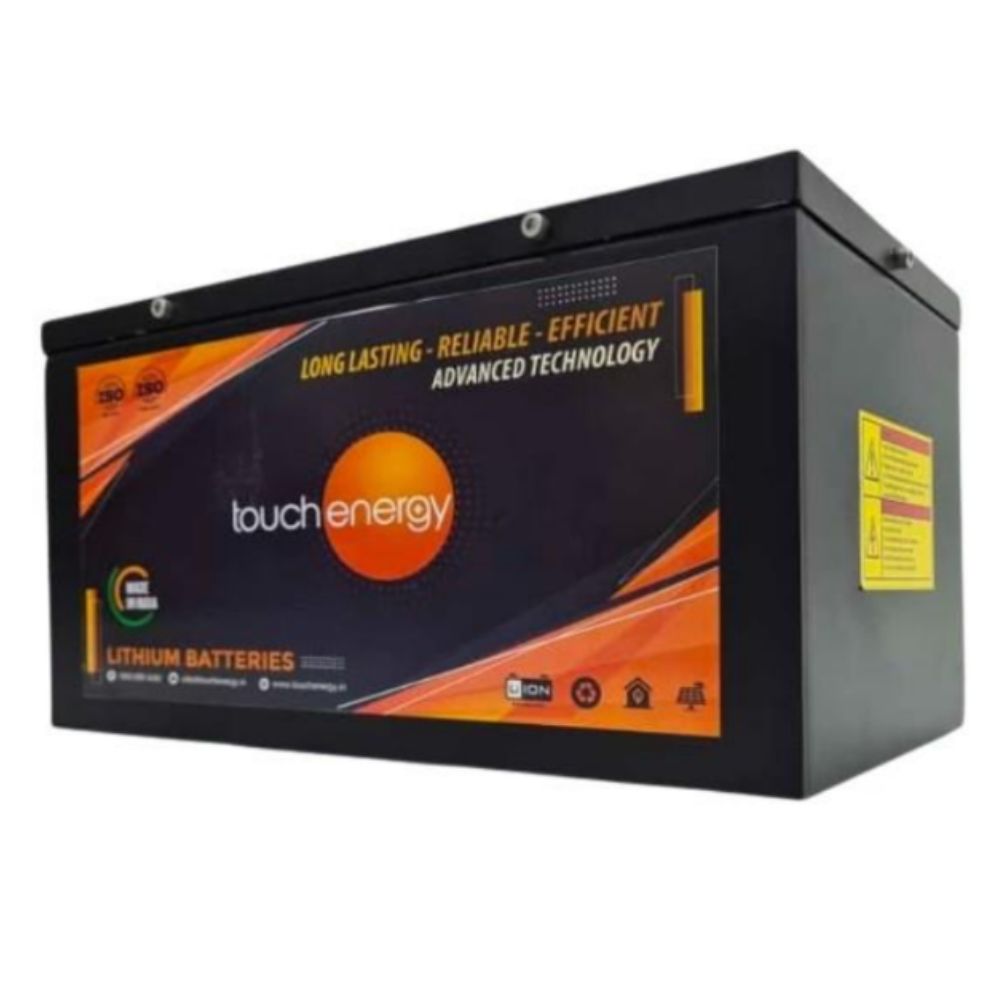

Touch Energy Lithium batteries have a significantly higher cycle life than lead-acid batteries. This means that our batteries can support a higher number of complete charge & discharge cycles. Lithium-ion batteries are cleaner, live longer, recycle better, and require much less maintenance
Description
| IP Rating | NA |
|---|---|
| Cell | 32650 - 3.2V-6000mAh |
| Weight (kg) | 78kg / Remark - ±5% |
| Nominal Voltage | 73.6 VDC |
| Dimensions** | 450 (L) x 345 (B) x 380 (H) mm / Remark - ±5 mm |
| Module Configuration (°C) | 23S 19P |
| Installed Energy (°C) | 8.39 KWh |
| Usable Energy (°C) | 7.55 KWh |
| Operating Voltage Range (°C) | 63.25 ~ 83.95 VDC |
| Rated Discharge Power (°C) | 8.39 kW |
| Rated Discharge Current (°C) | 100A |
| Cycle Life @ DoD 90% (°C) | ≥2,000 cycles / Remark - @ 25±3°C, 0.2C/1C |
