Description

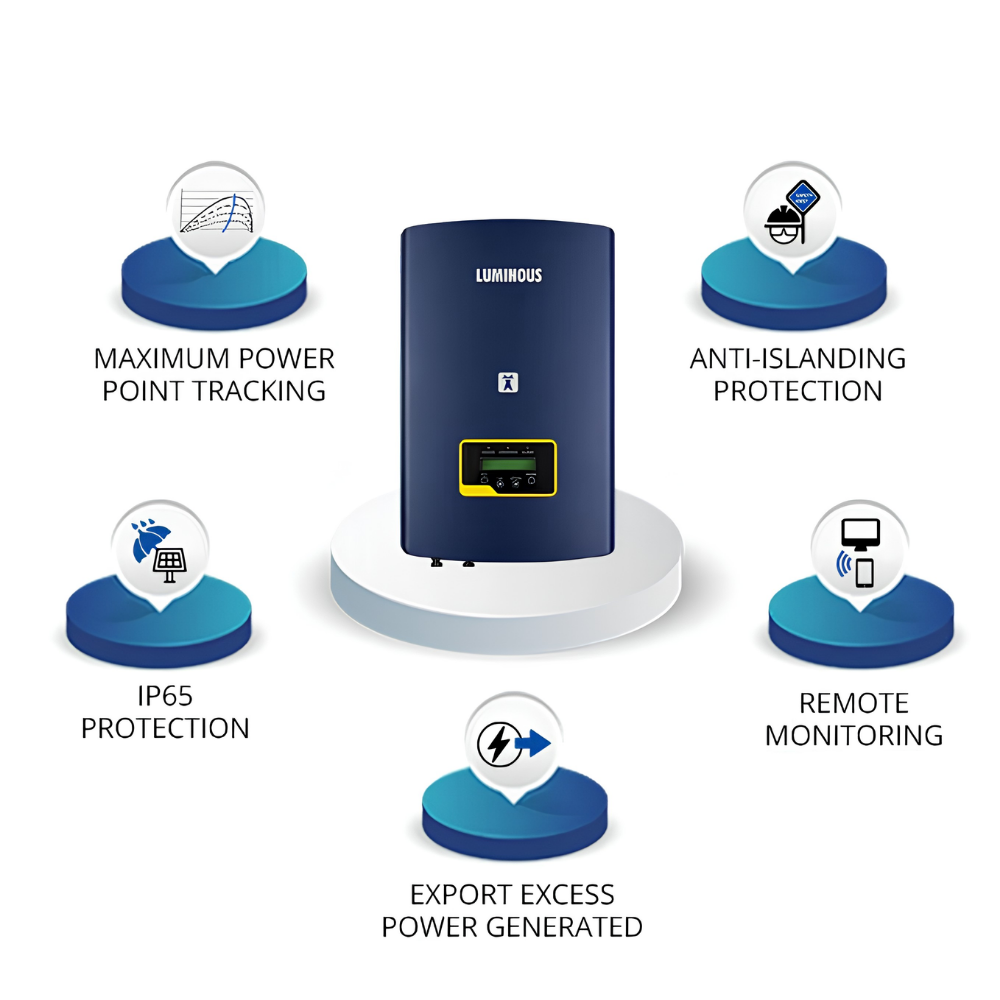

The NXH 150 A48 is a single-phase hybrid high-frequency inverter designed for residential and small commercial solar installations. It combines grid-tied and off-grid capabilities, allowing seamless switching between solar power, battery storage, and grid supply. With a 150A charging capacity and 48V DC bus, it efficiently manages energy flow while protecting your system with advanced safety features. Ideal for areas with unstable grid supply, this inverter maximizes solar utilization and reduces electricity costs. Built for reliability and performance in Indian climate conditions.
Description
| DC Switch | Yes |
|---|---|
| Dimensions** | 485 *527 *230mm |
| Cooling Type | Natural |
| Maximum charge/discharge current | 120/120 |
| Residual Current Monitoring | Yes |
| DC Reverse Polarity Protection | Yes |
| Anti - Islanding Protection | Yes |
| Operating Temperature Range (°C) | -25~600C(Derating above 400C) |
| Ingress Protection | IP66 |
| Safety | IEC/EN62109-1/-2 |
| EMC | IEC/EN61000-6-1/-2/-3 |
| BMS Features (°C) | RS485; CAN |
