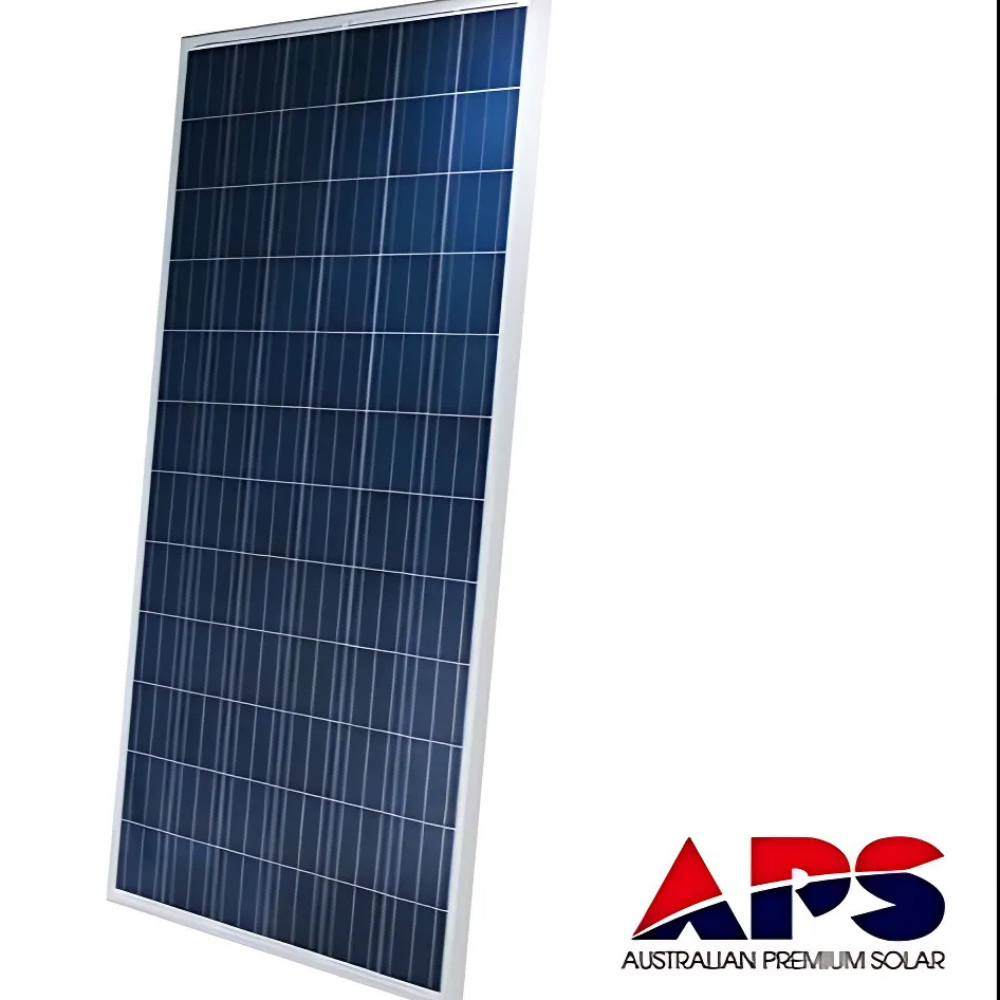

MONOCRYSTALLINE SILICON 520Wp - 550Wp | APSAM-520/144


Description

  • Australian Brand manufactured with APS's high standards of design & quality control
  • PV Modules with highly reliable and enhanced crack tolerant cells to minimize micro-cracks
  • PV Modules with positive tolerance that delivers reliable higher output
  • PV Modules having high concentrated Photovoltaic cells for better conversion efficiency
  • PV Modules made from Half Cut Cells for optimum performance
  • Split twin peak junction boxes with special heat dissipation design for minimizing leakage current
  • PV Modules with high PID resistance
  • High PV Energy yields even under low light and cloudy conditions
  • PV Modules made from premium quality Raw Materials and advanced manufacturing processes to guarantee reliability
  • MNRE and ALML approved
  • Description

    Glass Low Iron, tempered glass, 3.2 / 2.8 mm
    Weight (kg) 28.25 Kg

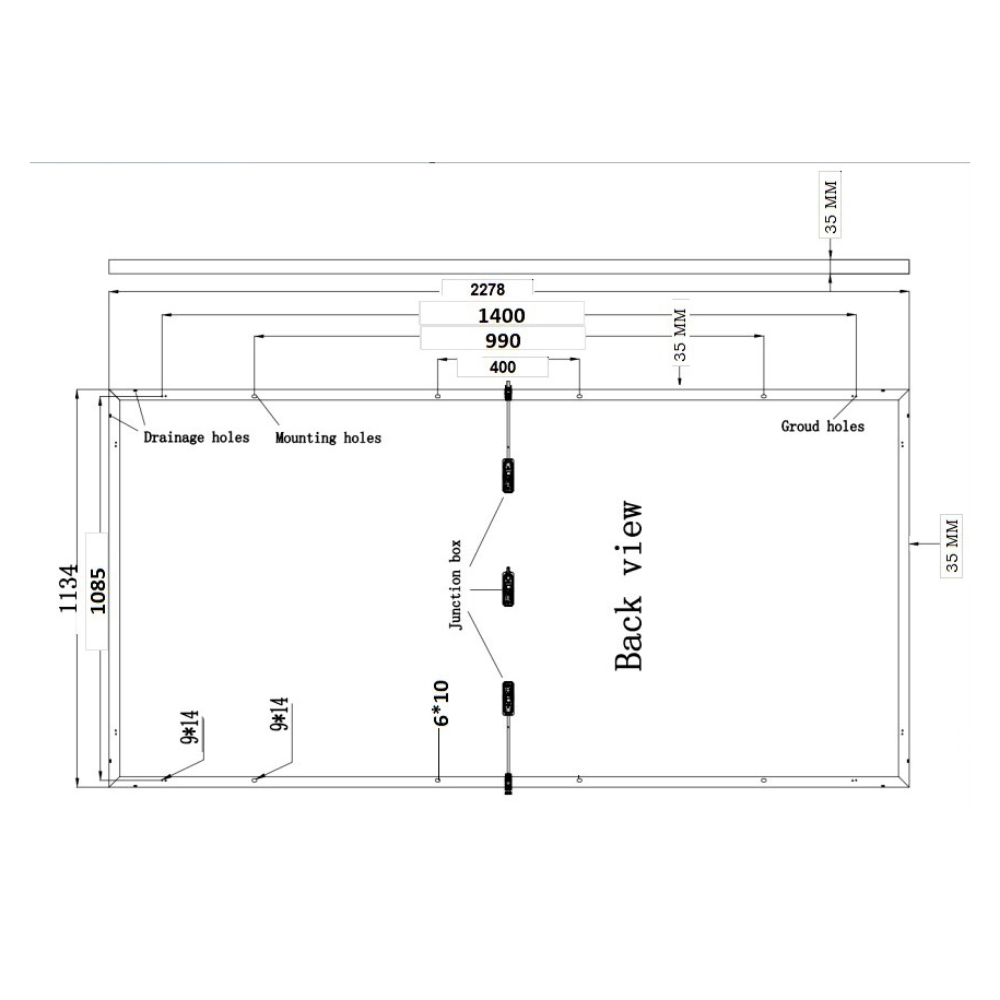

    Dimensions** 2278 X 1134 X 35 MM

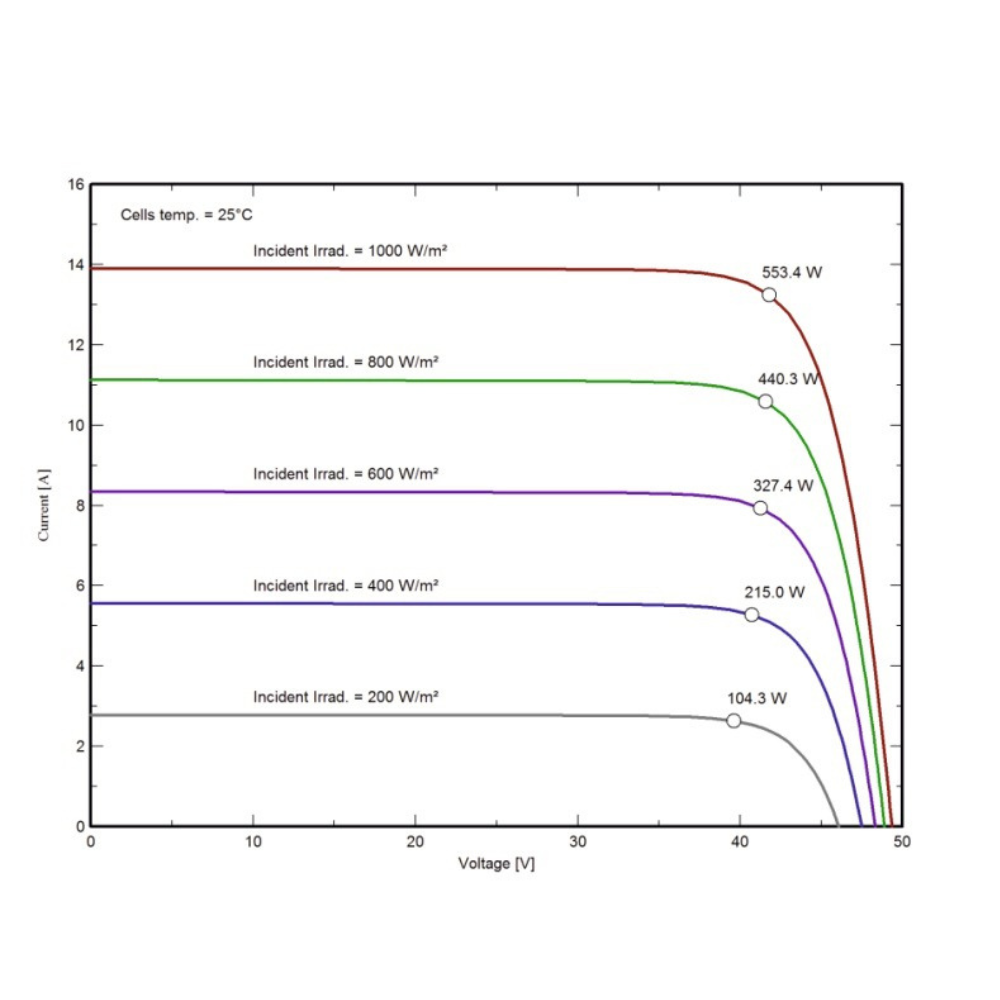

    Short Circuit Current (Isc) 13.54 A
    Open Circuit Voltage (Voc)(Isc) 48.18 V
    Maximum Power Current (Imp)(Isc) 12.65 A
    Maximum Power Voltage (Vmp)(Isc) 41.19 V
    Maximum Power (Pmax)(Isc) 520W
    Module Efficiency 20.22 %
