Description

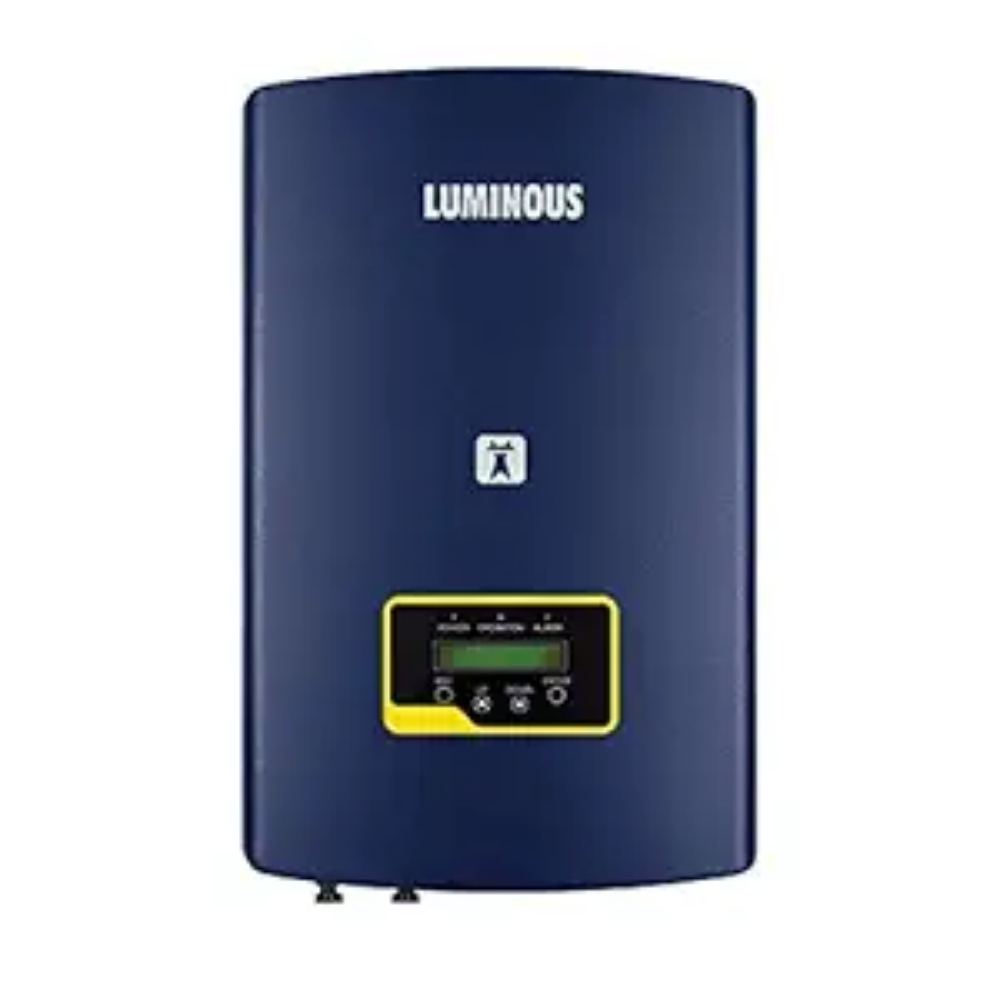

The Nxi 380-Pro is a robust 80kW three-phase grid-tie inverter engineered for large-scale commercial and industrial solar installations. Featuring advanced MPPT technology, it delivers maximum power point tracking across multiple input strings, ensuring optimal energy harvest from your solar array.
Built for reliability, this inverter offers high conversion efficiency and seamless grid integration with comprehensive monitoring capabilities. Its three-phase output design distributes power evenly across electrical systems, reducing strain and enhancing stability. The Nxi 380-Pro includes integrated safety features, surge protection, and thermal management for dependable long-term performance in demanding environments.
Ideal for businesses seeking to maximize solar ROI while maintaining grid compliance and operational efficiency.
Description
| Dimensions** | 1065W*587H*363D |
|---|---|
| Max.DC Power(kW) | 120 |
| Rated Output Power (kW) | 80 |
| Max.DC Input Voltage (V) | 1100 |
| Number of MPPT / Number of strings | 6 |
| MPPT EFFICIENCY | >99.5% |
| Max.EFFICIENCY | 98.5% |
| Max. Input Current [A] [V] | 3*40A+3*32A |
| MPPT Voltage Range [V] | 200-1000 |
| Start-up Voltage [V] | 180 |
OPERATING CONDITION
| Operating temperature range (°C) | -25°C to 60°C |
|---|
