Description

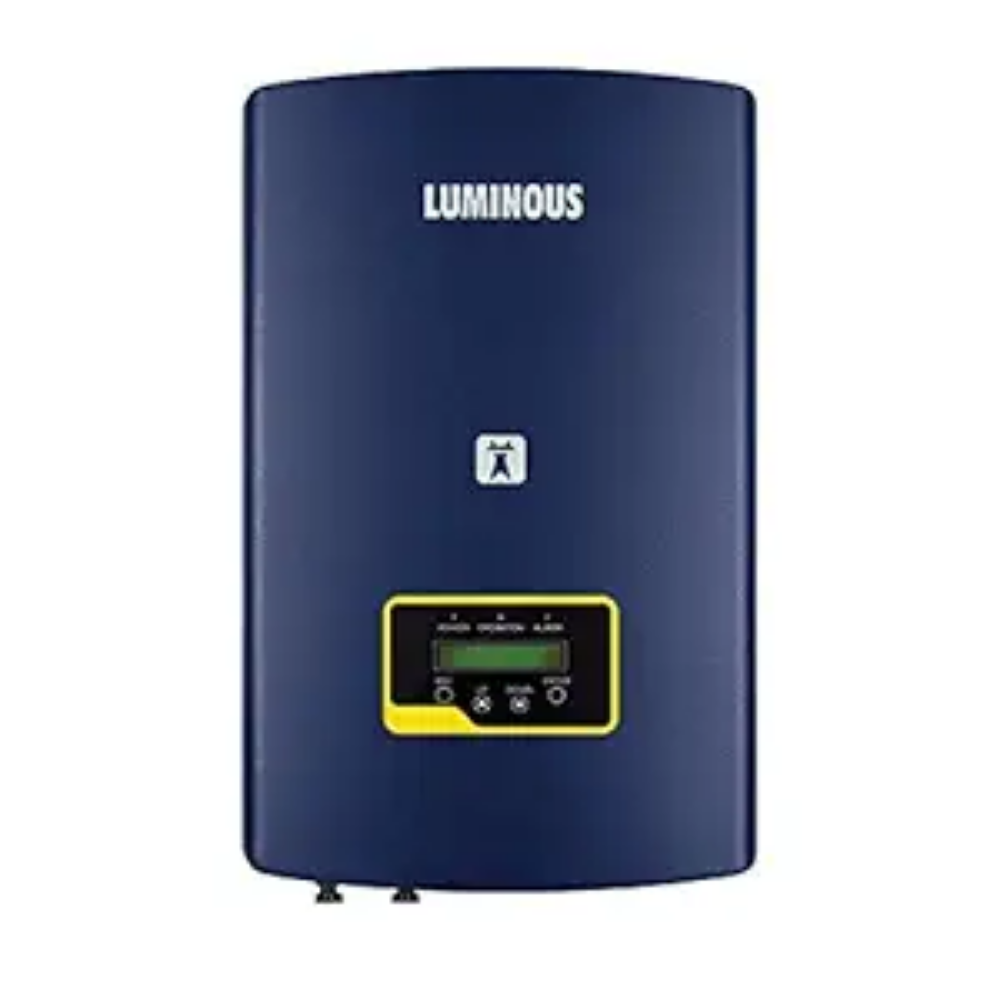

The Nxi 306-S5 is a robust 6kW three-phase grid-tie inverter designed for medium-scale solar installations. It efficiently converts DC power from your solar panels into AC power synchronized with the grid, maximizing energy yield and reducing electricity costs.
Key features include advanced MPPT technology for optimal panel performance, integrated DC disconnect, and comprehensive monitoring capabilities. The three-phase design ensures balanced power distribution across all phases, making it ideal for commercial and industrial applications.
Built with reliability in mind, this inverter offers excellent efficiency ratings and seamless grid integration. Its compact design simplifies installation while maintaining professional-grade performance standards for demanding solar projects.
Description
| Max. DC-Input Capacity | 9.0 |
|---|---|
| Dimensions** | 310W*563H*129D |
| Max.DC Power(kW) | 9.0 |
| Rated Output Power (kW) | 6 |
| Max.DC Input Voltage (V) | 1100 |
| Number of MPPT / Number of strings | 2 |
| MPPT EFFICIENCY | 99.5% |
| Max.EFFICIENCY | 98.30% |
| Max. Input Current [A] [V] | 1 6 A / 1 6 A |
| MPPT Voltage Range [V] | 160 - 1000 |
| Start-up Voltage [V] | 180 |
OPERATING CONDITION
| Operating temperature range (°C) | -25°C to 60°C |
|---|
