Description

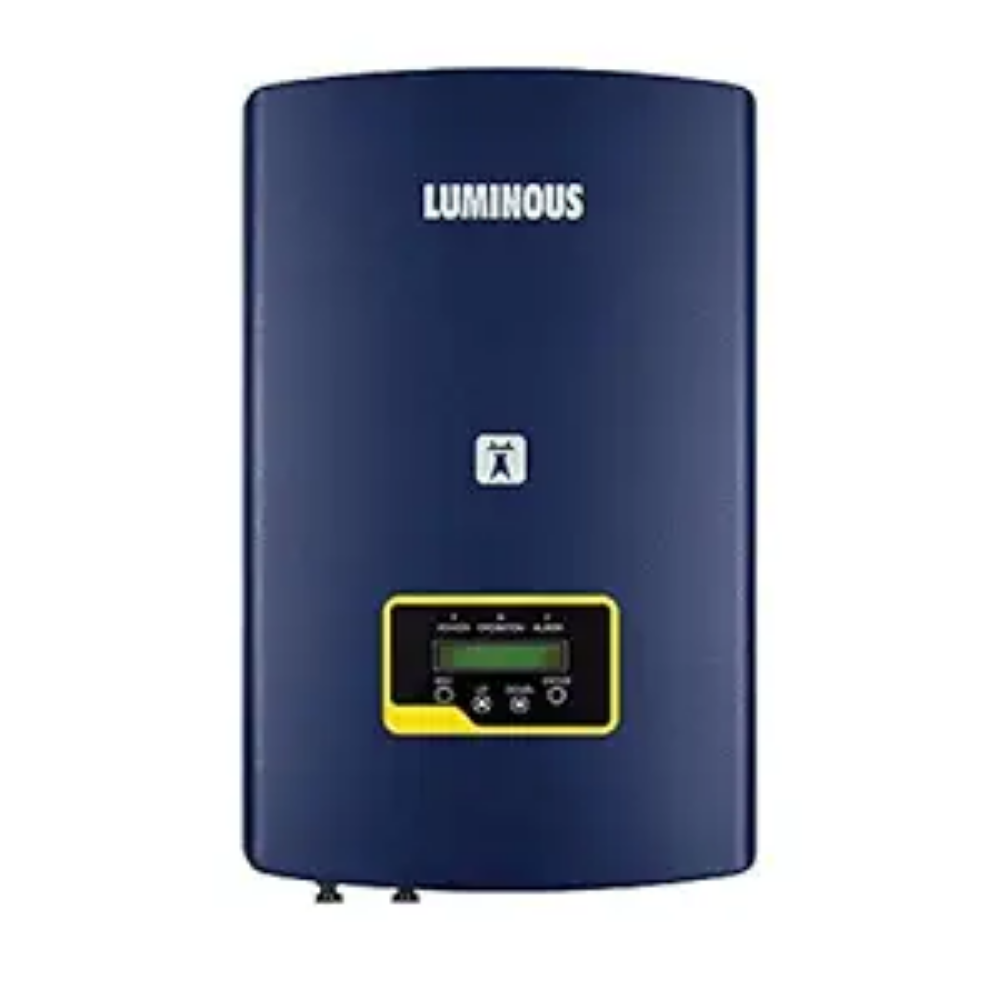

The Nxi 360-S5 is a robust 60kW three-phase grid-tie inverter designed for medium to large-scale solar installations. Built for high efficiency and reliable performance, it seamlessly converts DC power from your solar array into AC power synchronized with the grid.
Key features include advanced MPPT technology for maximum power extraction, integrated DC disconnect, and comprehensive monitoring capabilities. The three-phase design ensures balanced power distribution across all phases, making it ideal for commercial and industrial applications.
With its compact design and weather-resistant enclosure, the Nxi 360-S5 delivers consistent performance in diverse environmental conditions. Perfect for businesses looking to reduce energy costs while maintaining grid stability and reliability.
Description
| Dimensions** | 630W*700H*357D |
|---|---|
| Max.DC Power(kW) | 90 |
| Rated Output Power (kW) | 60 |
| Max.DC Input Voltage (V) | 1100 |
| Number of MPPT / Number of strings | 4 |
| MPPT EFFICIENCY | >99.5% |
| Max.EFFICIENCY | 98.7% |
| Max. Input Current [A] [V] | 4*28.5A |
| MPPT Voltage Range [V] | 200-1000 |
| Start-up Voltage [V] | 200 |
OPERATING CONDITION
| Operating temperature range (°C) | -25°C to 60°C |
|---|
Dimensional & Packing Details
