Description

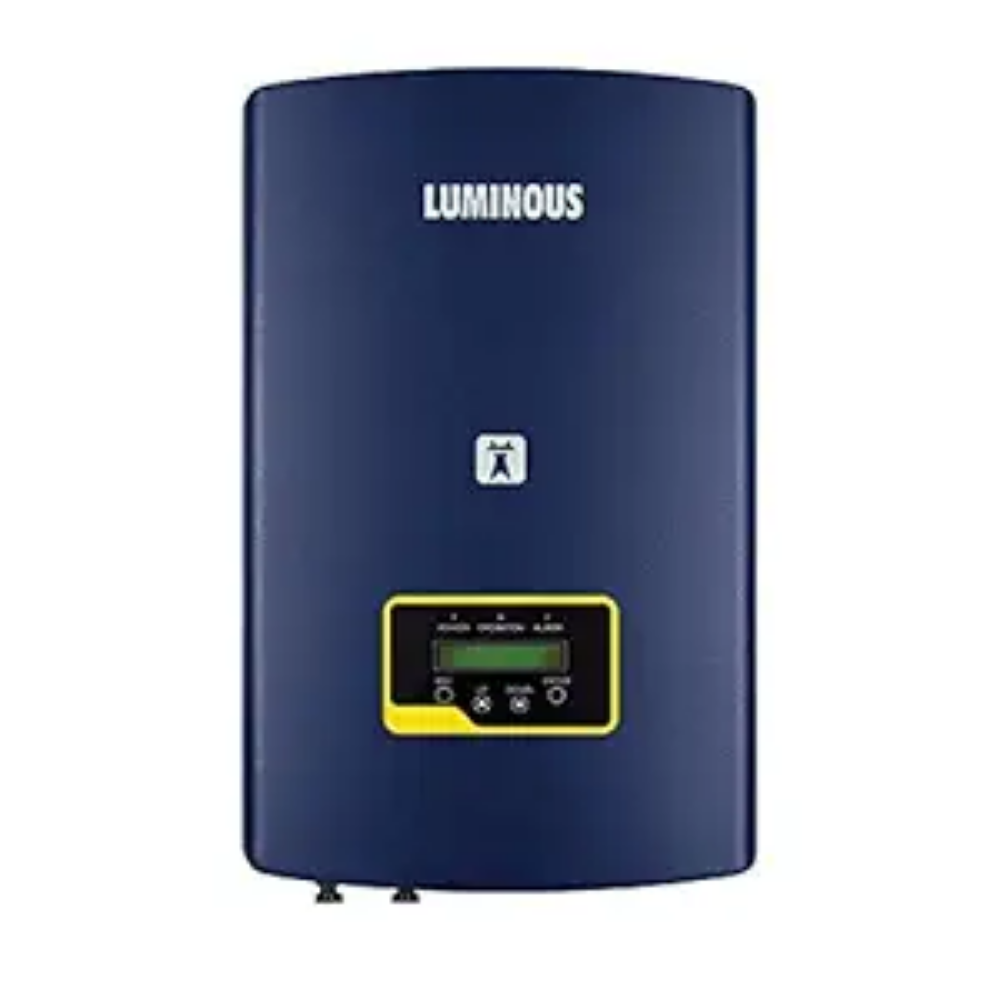

High-efficiency grid-tie inverter designed for three-phase solar installations. The 5KW Nxi 305-S5 converts DC power from your solar panels into AC power synchronized with the grid, maximizing energy yield and reducing electricity costs.
Features advanced MPPT technology for optimal power tracking across varying sunlight conditions. Compact design ensures easy installation on walls or in utility rooms. Built-in monitoring capabilities allow real-time performance tracking via compatible apps.
Ideal for residential and small commercial solar systems seeking reliable grid integration with minimal maintenance. Durable construction withstands India's diverse climate conditions while delivering consistent performance year-round.
Description
| Max. DC-Input Capacity | 7.5 |
|---|---|
| Dimensions** | 310W*563H*129D |
| Max.DC Power(kW) | 7.5 |
| Rated Output Power (kW) | 5 |
| Max.DC Input Voltage (V) | 1100 |
| Number of MPPT / Number of strings | 2 |
| MPPT EFFICIENCY | 99.5% |
| Max.EFFICIENCY | 98.30% |
| Max. Input Current [A] [V] | 1 6 A / 1 6 A |
| MPPT Voltage Range [V] | 160 - 1000 |
| Start-up Voltage [V] | 180 |
OPERATING CONDITION
| Operating temperature range (°C) | -25°C to 60°C |
|---|
Dimensional & Packing Details
