Description

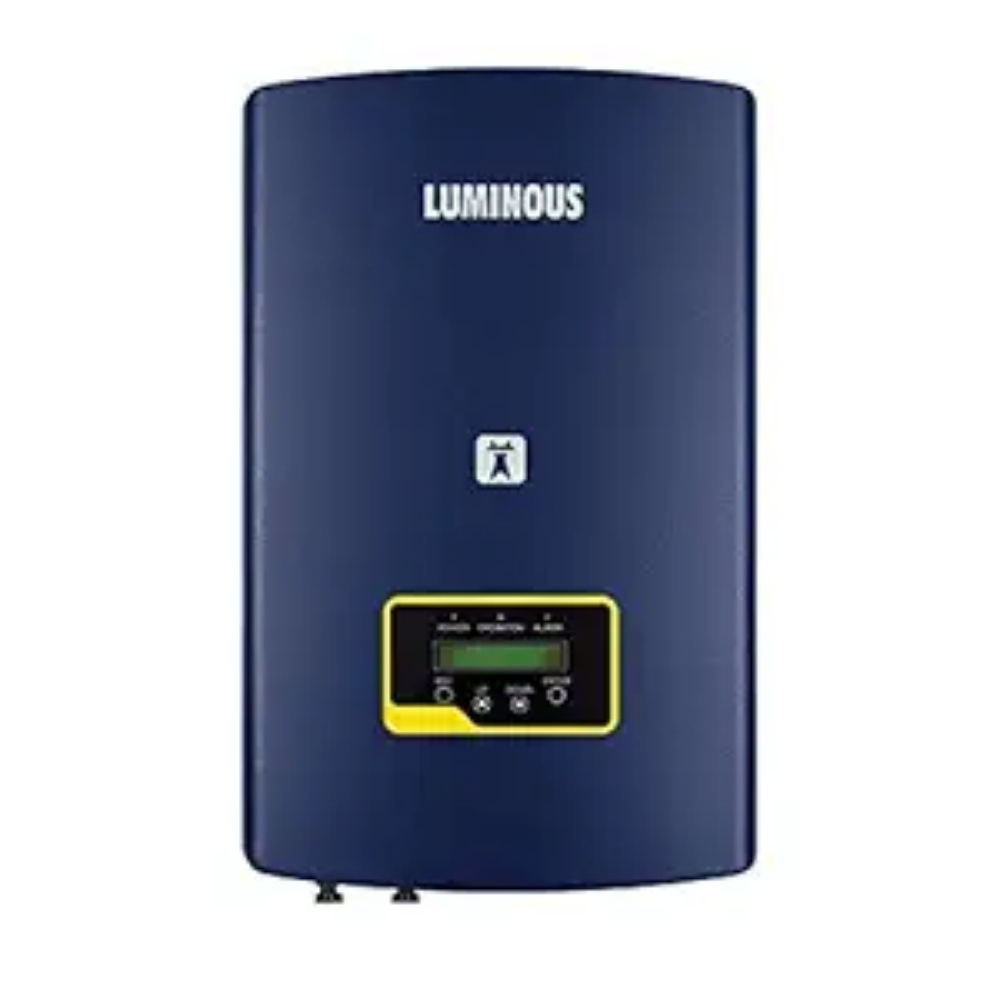

The Nxi 325-S5 is a robust 25kW three-phase grid-tie inverter designed for commercial and industrial solar installations. Built for high efficiency and reliable performance, it seamlessly converts DC power from your solar array into AC power synchronized with the grid.
Key features include advanced MPPT technology for maximum power extraction, integrated DC disconnect, and comprehensive monitoring capabilities. The three-phase output ensures balanced power distribution across all phases, making it ideal for larger commercial projects.
With its compact design and robust construction, the Nxi 325-S5 delivers consistent performance in demanding environments. Perfect for businesses looking to maximize solar energy generation while maintaining grid compliance and operational efficiency.
Description
| Dimensions** | 647W*629H*252D |
|---|---|
| Max.DC Power(kW) | 37.5 |
| Rated Output Power (kW) | 25 |
| Max.DC Input Voltage (V) | 1100 |
| Number of MPPT / Number of strings | 3 |
| MPPT EFFICIENCY | >99.5% |
| Max.EFFICIENCY | 98.5% |
| Max. Input Current [A] [V] | 32A/32A/32A |
| MPPT Voltage Range [V] | 200-1000 |
| Start-up Voltage [V] | 180 |
OPERATING CONDITION
| Operating temperature range (°C) | -25°C to 60°C |
|---|
