Description

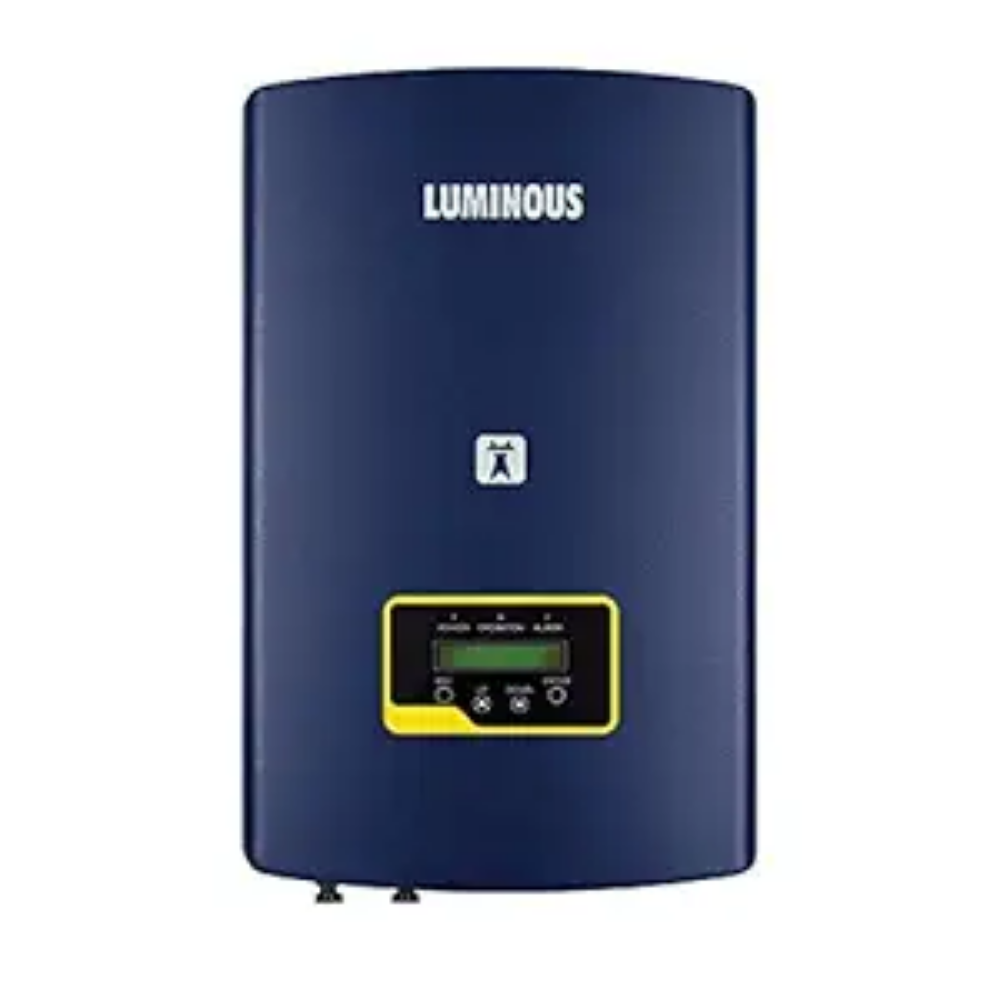

The Nxi 315-S5 is a robust 15kW three-phase grid-tie inverter designed for commercial and industrial solar installations. Built for high efficiency and reliable performance, it seamlessly converts DC power from your solar array into AC power synchronized with the grid.
Key features include advanced MPPT technology for maximum power extraction, integrated DC disconnect, and comprehensive monitoring capabilities. The three-phase output ensures balanced power distribution across all phases, making it ideal for larger installations requiring consistent performance.
With its compact design and proven reliability, the Nxi 315-S5 delivers excellent value for businesses looking to maximize their solar investment while maintaining grid compliance and operational efficiency.
Description
| Max. DC-Input Capacity | 22.5 |
|---|---|
| Dimensions** | 310W*608H*219D |
| Max.DC Power(kW) | 22.5 |
| Rated Output Power (kW) | 15 |
| Max.DC Input Voltage (V) | 1100 |
| Number of MPPT / Number of strings | 2 |
| MPPT EFFICIENCY | 99.5% |
| Max.EFFICIENCY | 98.60% |
| Max. Input Current [A] [V] | 32A/32A |
| MPPT Voltage Range [V] | 160 - 1000 |
| Start-up Voltage [V] | 180 |
OPERATING CONDITION
| Operating temperature range (°C) | -25°C to 60°C |
|---|
Dimensional & Packing Details
