Description

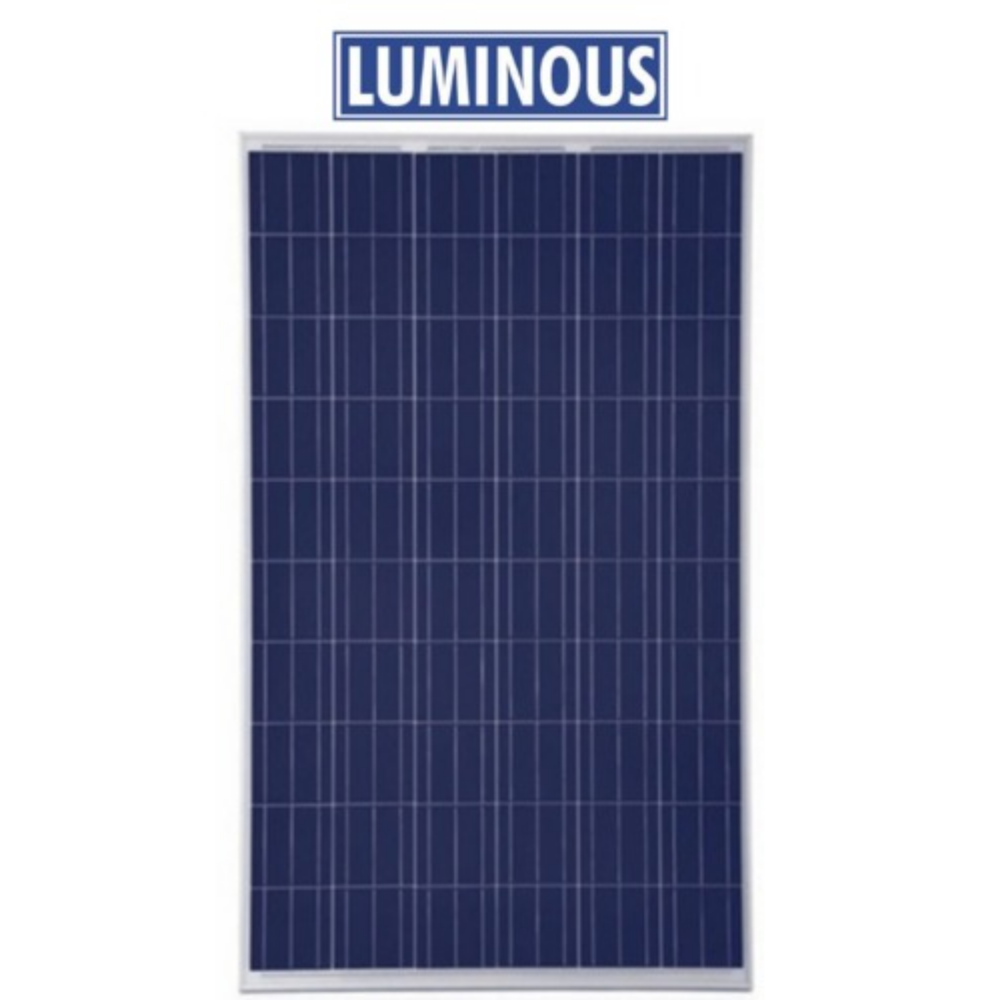

G12R TOPCON PANELS NON-DCR LUM 635TG132 BI-GL represents cutting-edge solar technology designed for maximum efficiency and durability. These bifacial glass-laminate panels leverage TOPCON cell architecture to deliver superior performance in diverse lighting conditions.
With a rated output of 635W, these non-DCR (Domestic Content Requirement) compliant panels are engineered for commercial and utility-scale installations. The bifacial design captures sunlight from both front and rear surfaces, increasing energy generation compared to traditional monofacial alternatives.
Built with premium materials and advanced manufacturing processes, these panels offer excellent long-term reliability and minimal degradation. Ideal for rooftop systems, ground-mounted arrays, and solar farms seeking optimal power density and performance consistency.
Description
| Glass | Front 2.0mm ARC; back 2.0mm Non-ARC |
|---|---|
| Cell Type | TOPCON (N-Type) |
| Product Warranty (Years) | 12 Years |
| Performance Warranty (Years) | Linear Performance warranty for 30 Years with 1% for 1st year degradation and 0.45% from year 2 to 30 |
| Operating Temperature - Charge | -40°C to +85°C |
| Module Efficiency | 23.51 |
| Short-circuit current Isc (A) | 16.21 |
OPERATING CONDITION
| Maximum system voltage (UL & IEC) | 1500 |
|---|---|
| Maximum series fuse rating (A) | 30A |
MODULE MECHANICAL CHARACTERISTICS
| Module weight | 32.5 Kg |
|---|---|
| Number of cells & size | High quality Encapsulant |
| Frame material | Anodized Aluminium |
| Cable | 300mm length cables (+ve and -ve Terminal), MC4 Compatible/ MC4 Connectors |
| Junction Box | IP 68, Split Junction Box with individual bypass diodes |
| Encapsulant Material | Glass |
Dimensional & Packing Details
| Modules/ Pallet (UL & IEC) |
|---|
