Description

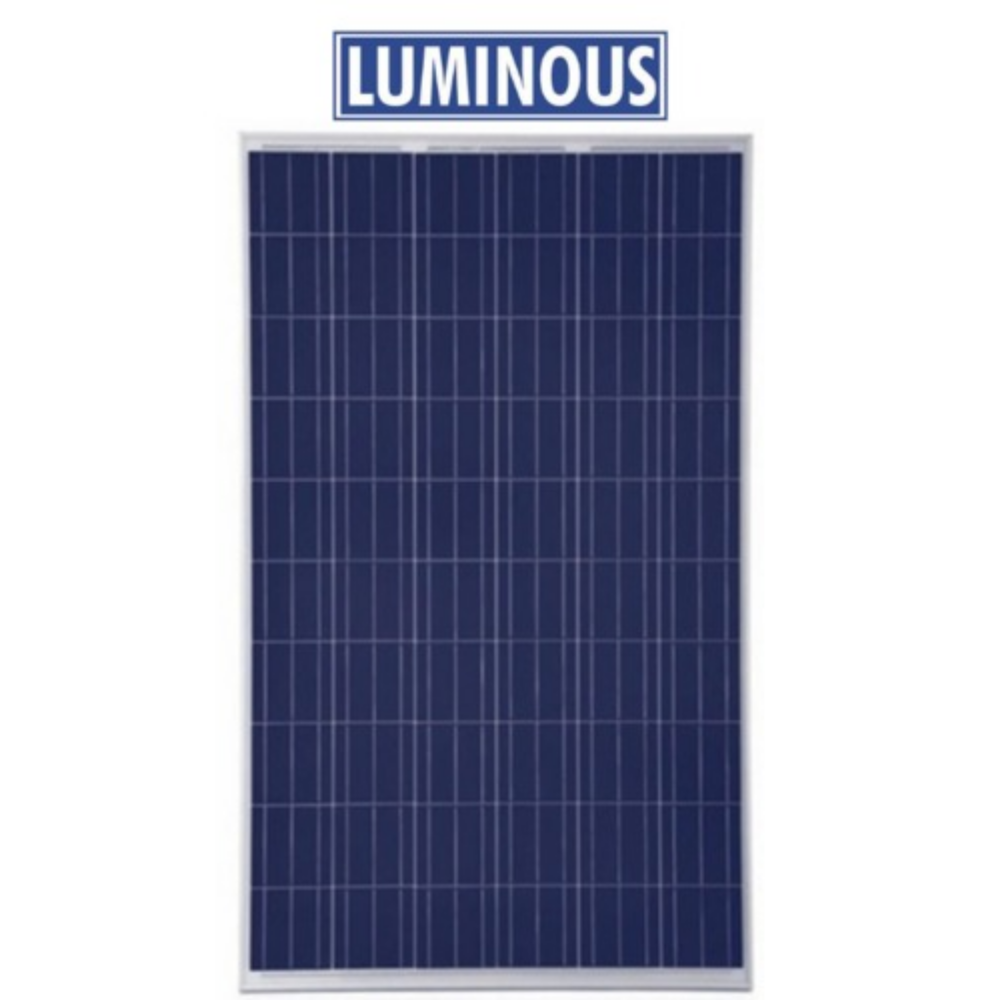

G12R TOPCON PANELS LUM 620TG132 BI-GL represent cutting-edge solar technology designed for maximum efficiency and durability. These bifacial glass-laminate panels feature advanced TOPCON cell architecture, delivering superior performance in both direct and diffuse light conditions.
With a rated capacity of 620W, these panels are engineered for residential and commercial installations requiring high power output in compact spaces. The bifacial design captures reflected light from ground surfaces, increasing overall energy generation compared to traditional monofacial alternatives.
Built with premium materials and rigorous quality standards, the LUM 620TG132 BI-GL panels offer excellent temperature coefficient performance and long-term reliability. Ideal for rooftop systems, ground-mounted arrays, and installations where space optimization matters, these panels deliver consistent power generation across varying weather conditions.
Perfect for customers seeking next-generation solar solutions with proven efficiency and durability.
Description
| Glass | Front 2.0mm ARC; back 2.0mm Non-ARC Front 2.0mm ARC; back 2.0mm Non-ARC Front 2.0mm ARC; back 2.0mm Non-ARC Front 2.0mm ARC; back 2.0mm Non-ARC |
|---|---|
| Cell Type | TOPCON (N-Type) |
| Product Warranty (Years) | 12 Years |
| Performance Warranty (Years) | Linear Performance warranty for 30 Years with 1% for 1st year degradation and 0.45% from year 2 to 30 |
| Operating Temperature - Charge | -40°C to +85°C |
| Maximum Power Voltage (Vmp)(Isc) | 40.99 |
| Module Efficiency | 23.51 |
| Maximum Current Imp (A) | 15.13 |
| Short-circuit current Isc (A) | 16.21 |
OPERATING CONDITION
| Maximum system voltage (UL & IEC) | 1500 |
|---|---|
| Maximum series fuse rating (A) | 30A |
MODULE MECHANICAL CHARACTERISTICS
| Module weight | 32.5 Kg |
|---|---|
| Number of cells & size | High quality Encapsulant |
| Frame material | Anodized Aluminium |
| Cable | 300mm length cables (+ve and -ve Terminal), MC4 Compatible/ MC4 Connectors |
| Junction Box | IP 68, Split Junction Box with individual bypass diodes |
| Encapsulant Material | Glass |
Dimensional & Packing Details
| Modules/ Pallet (UL & IEC) |
|---|
