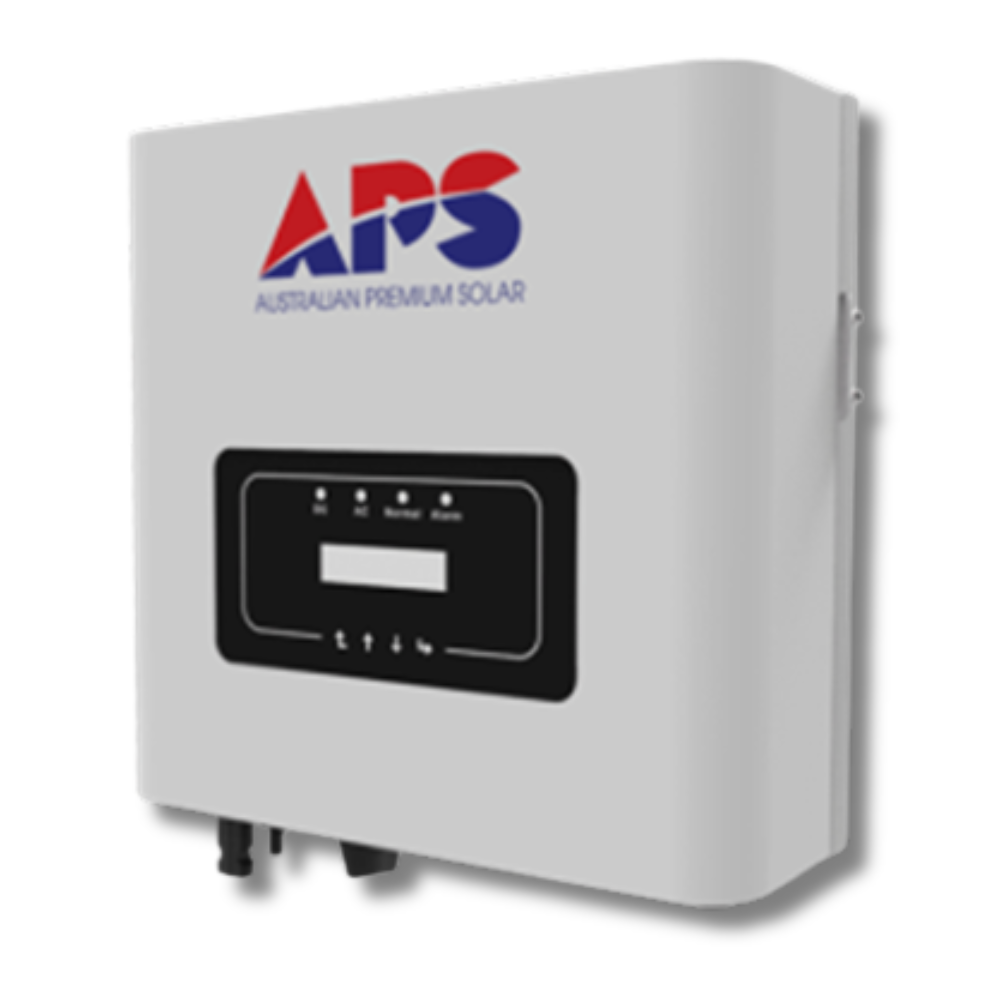

APS offers high-quality, grid-connected solar inverters, locally manufactured for both residential and commercial use. With a wide range of inverters from 1kW to 100kW, including single-phase and three-phase options, we ensure superior performance and integration. Our inverters boast an impressive 98.5% efficiency and come with advanced features like Wi-Fi and GPRS connectivity. Backed by reliable after-sales service and 10-year warranty*, APS solar inverters guarantee top performance and long-term reliability
Description
| DC Switch | Optional |
|---|---|
| Warranty | 10 Years |
| Humidity | 0~100( No Condensation ) |
| Max.DC Power(kW) | 5980 |
| Max.Output Apparent power (VA) | 5060 |
| Max.Output Current (A) | 22.0 |
| Energy Source | GRID-CONNECTED PV |
| Rated Grid Voltage (v) | 220/230/240 |
| Rated Grid Frequency (Hz) | 50/60 |
| Rated Output Current (A) | 20.0 |
| Power Factor | 1 (Adjustable from 0.8 leading to 0.8 lagging) |
| Total Harmonic Distorion (THDi) (%) | <3 |
| MPPT EFFICIENCY | 99.00 |
| Euro EFFICIENCY | 96.80 |
| Max.EFFICIENCY | 97.40 |
| Insultation Monitorin | Yes |
| Residual Current Monitoring | Yes |
| DC Reverse Polarity Protection | Yes |
| Anti - Islanding Protection | Yes |
| AC Overcurrent Protection | Yes |
| AC Overvoltage Protection | Yes |
| Surge Protection | Optional (DC/AC : Type ||) |
| AFCI | Optional |
| Noise Emission (typical)(dB) | <30 |
| Max.OperaƟng Altitude (m) | 3000 |
| Operating Temperature Range (°C) | -25~60 |
| Ingress Protection | IP65 |
| Internal Consumption at Night (W) | <1 |
| Display | LCE, Touch Key, App, Website |
| Safety | EN/IEC 62109-1/2, BIS IS 16169, BIS IS 16221-1/2 |
| EMC | EN 61000-6-1/2/3/4 |
| Grid Regulation | AS/NZS-4777.2, ABNT NBR 16149, ABNT NBR 16150, C10/11, EN 50549-1, VDE-AR-N4105, VDE V 0126-1-1, UTE C 15-712-1, TAI-PEA, TAI-MEA, RD 1699, CEI 0-21, IEC 61727, IEC 62116, IEC 61683, IEC 60068, IEC 60068-2-1/2/14/30/64/G98,G99 |
