Description

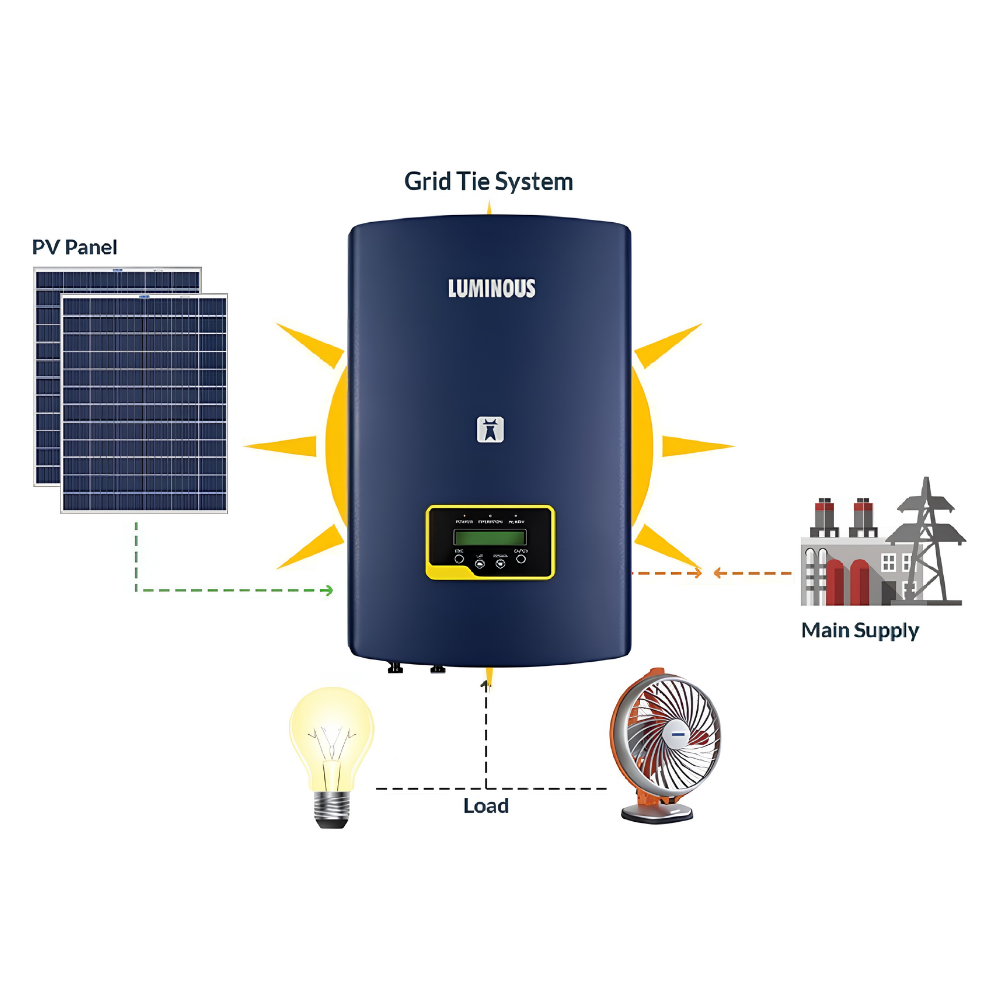

The NXIT150 is a reliable single-phase grid-tie inverter designed for residential and small commercial solar installations. It converts DC power from your solar panels into AC power that seamlessly feeds into the grid, maximizing energy utilization and reducing electricity costs.
With advanced MPPT technology, this inverter ensures optimal power extraction from your solar array across varying weather conditions. The compact design allows for easy installation, while built-in safety features protect your system and home. Ideal for rooftop or ground-mounted solar setups, the NXIT150 delivers consistent performance and long-term durability for your renewable energy investment.
Description
| Dimensions** | 370W *318.5H *105.5D |
|---|---|
| Max.DC Power(kW) | 7.5 |
| Rated Output Power (kW) | 5 |
| Max.DC Input Voltage (V) | 550 |
| Number of MPPT / Number of strings | 1 |
| Power Factor | 0.8 …1... 0.8 |
| Total Harmonic Distorion (THDi) (%) | < 2.5% |
| MPPT EFFICIENCY | >99.9 |
| Max.EFFICIENCY | 97.5% |
| Cooling Method | Smart Cooling |
| Topology | Transformerless |
| Max.OperaƟng Altitude (m) | 2000m |
| Operating Temperature Range (°C) | -25°C to 60°C |
| Ingress Protection | IP65 |
| Internal Consumption at Night (W) | < 0.2 W |
| Display | LCD |
| Safety | BIS Certi ed as per IS/IEC standards |
| MPPT Voltage Range [V] | 100 - 500 |
| Start-up Voltage [V] | 75 |
| Noise (dB) | <25dBA |
