Description

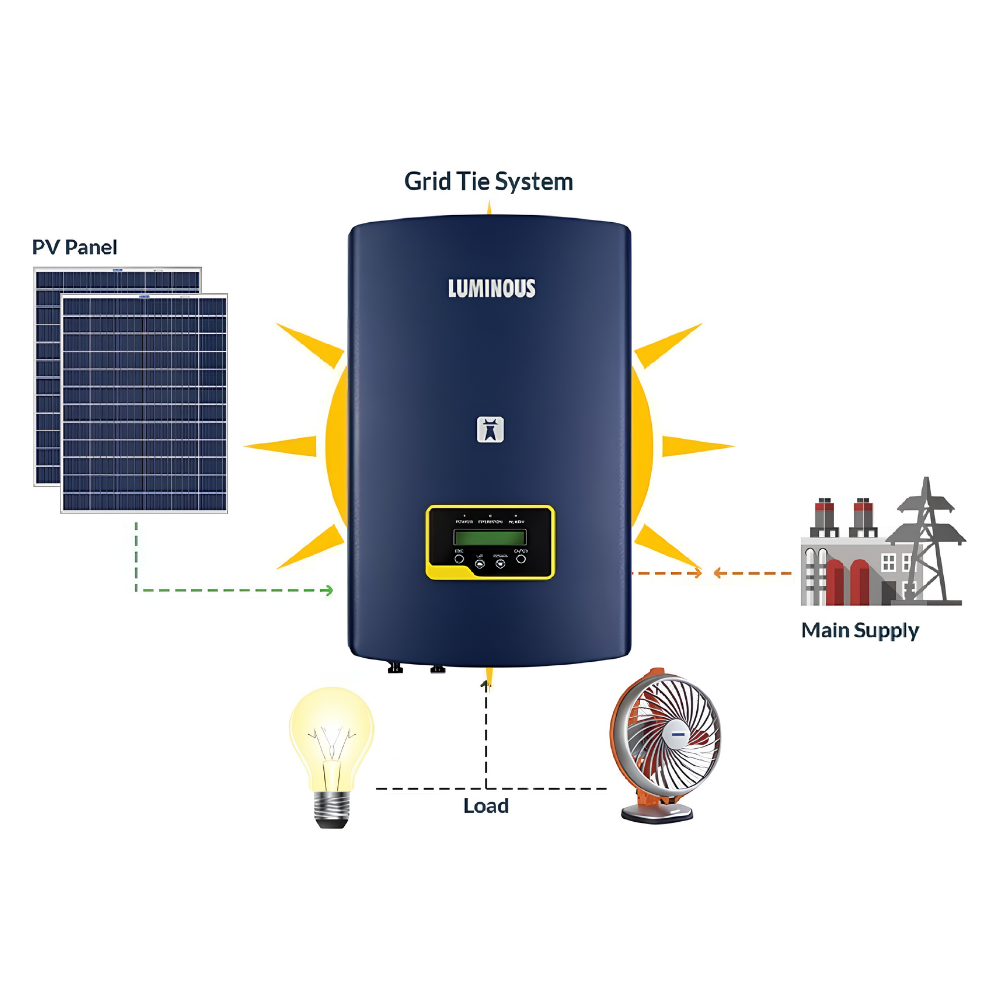

The NXIT310 is a robust three-phase grid-tie inverter designed for medium to large-scale solar installations. It seamlessly converts DC power from your solar array into AC power synchronized with the grid, maximizing energy yield and reducing electricity costs.
Built for reliability, this inverter features advanced monitoring capabilities, efficient power conversion, and comprehensive protection systems. Ideal for commercial and industrial applications where consistent performance and durability are essential.
The three-phase design ensures balanced power distribution across all phases, making it perfect for facilities with substantial energy demands. Easy installation and intuitive controls simplify setup and ongoing maintenance.
Description
| Dimensions** | 300W*294H*104D |
|---|---|
| Max.DC Power(kW) | 4.5 |
| Rated Output Power (kW) | 3 |
| Max.DC Input Voltage (V) | 550 |
| Number of MPPT / Number of strings | 1 |
| Power Factor | 0.8 …1... 0.8 |
| Total Harmonic Distorion (THDi) (%) | < 1.5% |
| MPPT EFFICIENCY | >99.9 |
| Max.EFFICIENCY | 97.5% |
| Cooling Method | Smart Cooling |
| Topology | Transformerless |
| Max.OperaƟng Altitude (m) | 2000m |
| Operating Temperature Range (°C) | -25°C to 60°C |
| Ingress Protection | IP65 |
| Internal Consumption at Night (W) | < 0.2 W |
| Display | LCD |
| Safety | BIS Certi ed as per IS/IEC standards |
| MPPT Voltage Range [V] | 100 - 500 |
| Start-up Voltage [V] | 75 |
| Noise (dB) | <25dBA |
