Description

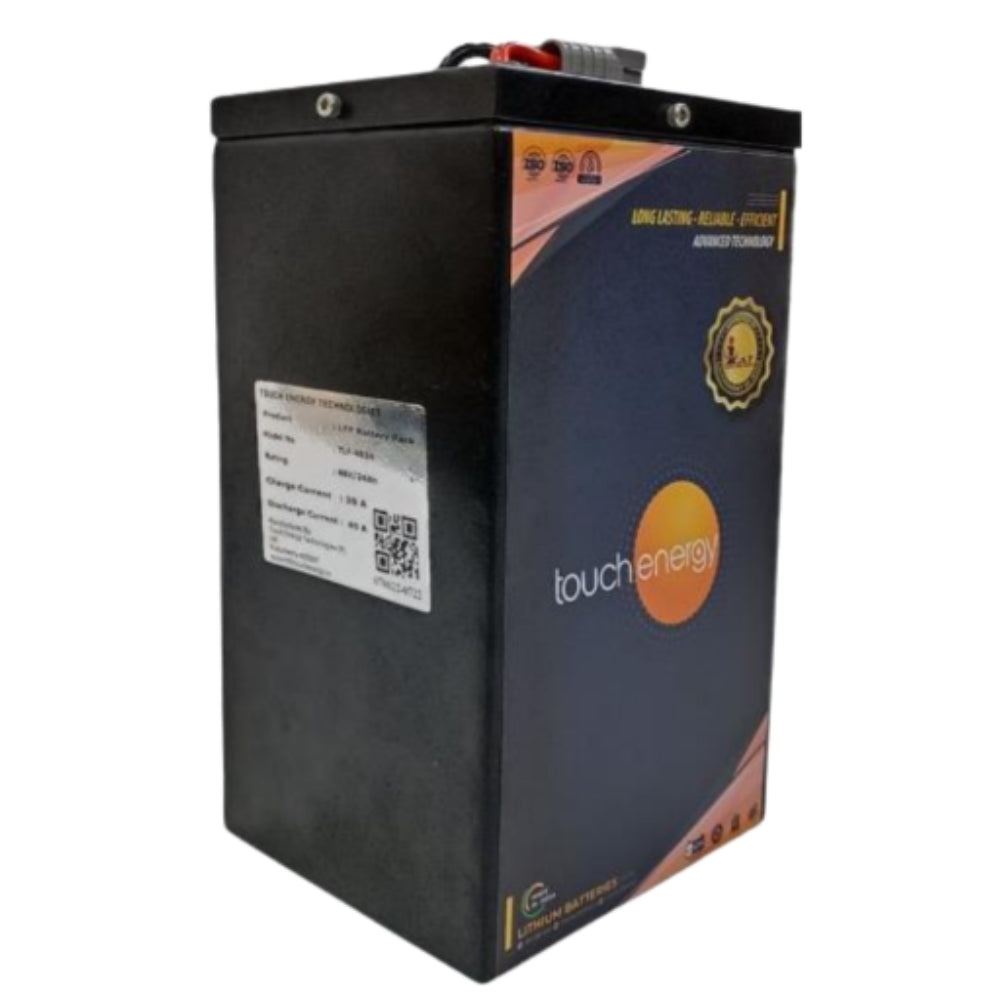

Touch Energy Lithium batteries have a significantly higher cycle life than lead-acid batteries. This means that our batteries can support a higher number of complete charge & discharge cycles. Lithium-ion batteries are cleaner, live longer, recycle better, and require much less maintenance
Description
| IP Rating | IP63 |
|---|---|
| Cell | 32650-3.2V-6000mAh |
| Weight (kg) | 17 kg / Remark - ±5% |
| Nominal Voltage | 60.8 VDC / Remark - @ 90% |
| Dimensions** | 180 (L) x 165 (B) x 385 (H) mm / Remark - ±5 mm |
| Communication | CAN, RS485, UART, BLUETOOTH |
| Module Configuration (°C) | 19S 4P |
| Installed Energy (°C) | 1.45 KWh |
| Usable Energy (°C) | 1.31 KWh |
| Operating Voltage Range (°C) | 52.25 ~ 69.35 VDC |
| Rapid Charge Current(°C) | 12 A / Remark - @ 0.5C |
| Pulse Discharge Current (°C) | 50 A / Remark - ≤ 2S |
| Rated Discharge Power (°C) | 1.45 kW |
| Rated Discharge Current (°C) | 24A |
| BMS Features (°C) | Deep discharge & Over Charge, Cell Balancing & temperature compensation, short circuit |
| Cycle Life @ DoD 90% (°C) | ≥2,000 cycles / Remarks -@ 25±3°C, 0.2C/1C |
